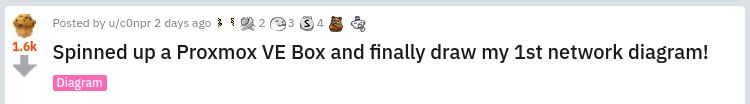

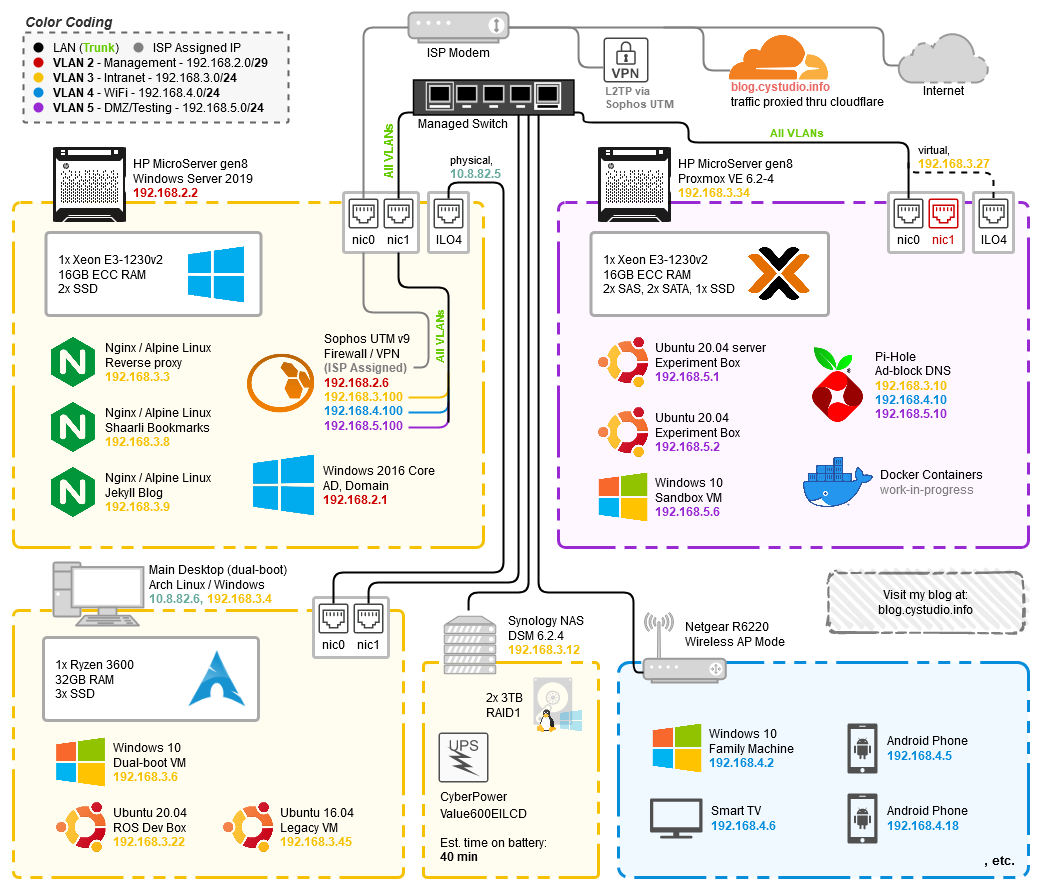

A few days ago I finally made a functional diagram showing my homelab setup and posted it on r/homelab sub-reddit. It surprised me that I got ~1.6k upvotes and a few awards.

Here is the link to the reddit post if you want to join the discussion.

And also the svg of the diagram giving higher resolution and selectable text.

Special thanks to u/TechGeek01 for his draw.io template and libaray.

I would like to tidy-up a few things and create a template for the doing network diagrams on draw.io if I have time.
